Site Plans & Drainage

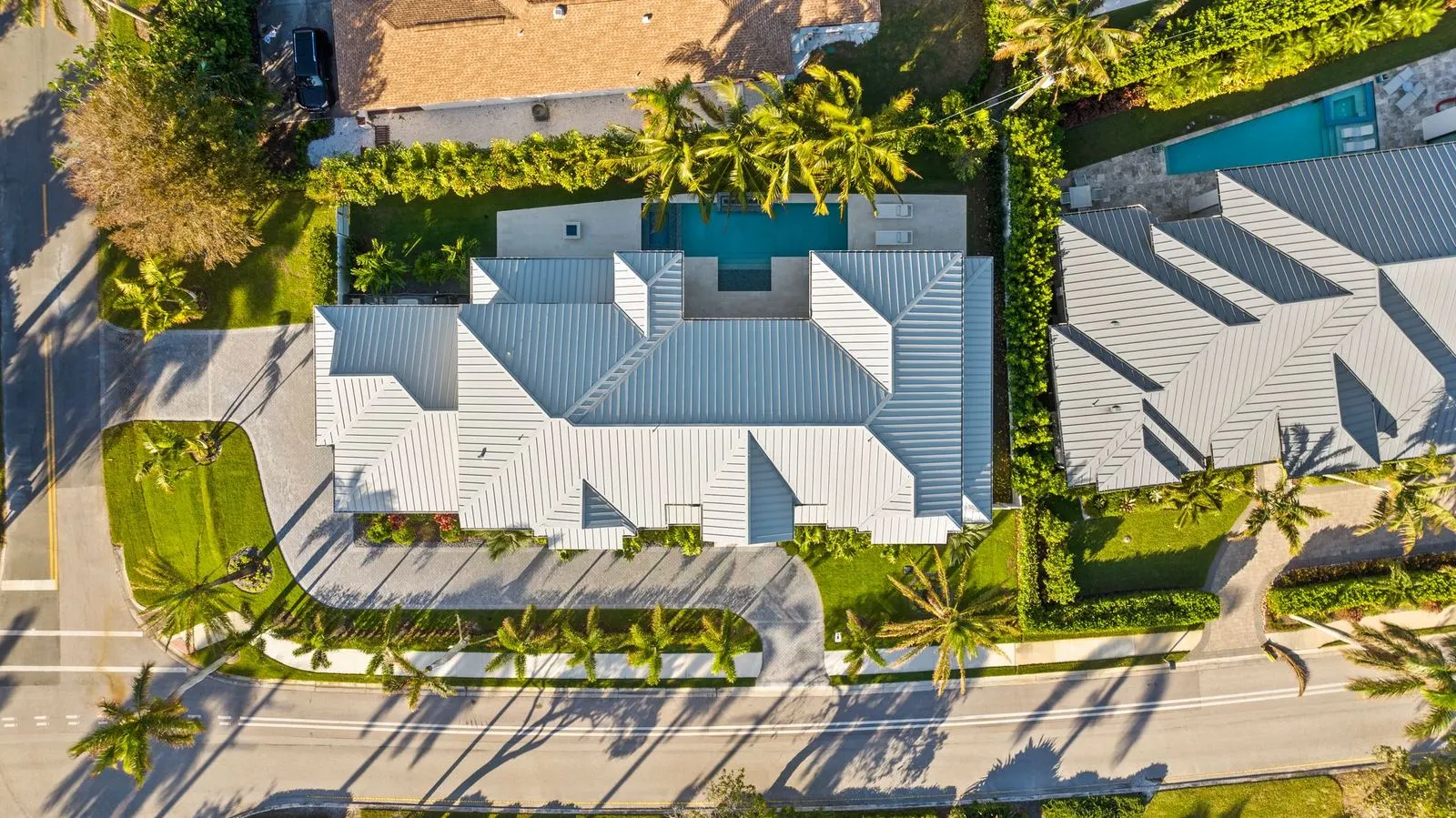

We prepare a site plan that shows where the building sits on your lot, the setbacks and how water drains across the site.

Scope

Our site plans show proposed improvements, setbacks, driveways, and applicable site features.
Drainage plans address proposed grading, elevations, and stormwater flow.

1
Step 1
Send your survey
Share your lot survey and what you plan to build.
2
Step 2
Draw the site plan
We place the building and show setbacks and drainage.
3
Step 3
Revise
We update the plan based on your comments.
4
Step 4
Prepare the permit set
We complete the site plan for your permit application.

What do I receive?: A site plan showing the building, setbacks and drainage for your lot. Our site plans show proposed improvements, setbacks, driveways, and applicable site features. Drainage plans address proposed grading, elevations, and stormwater flow.
What do I need to provide?: Clients must provide a current survey showing property boundaries, existing improvements, and elevations needed for the design.
Can I make changes to the site plan?: Yes. We update the plan based on your comments, then complete the site plan for your permit application.
Do you work with my builder or contractor?: Yes, we work with homeowners and with builders.
Which areas do you serve?: Collier and Lee County, including Naples, Marco Island and Bonita Springs.
Do you work with my building department?: We coordinate directly with building departments and handle plan review comments for our clients, including responses and plan revisions related to our scope of work.
How do I get started?: Use the Start your project form or call (239) 243-1534. Tell us about the lot and what you plan to build, where it is, and share any plans, survey or photos you have.
